scip-swift

A SCIP indexer for Swift. It converts a Swift repo's build index into genuine scip.proto output — real protobuf Index/Document/Symbol/Occurrence messages, consumable by any standard SCIP tool (the scip CLI, codeintel, Sourcegraph, editor plugins) — by reading the same IndexStoreDB index that powers Xcode's own "jump to definition" and SourceKit-LSP.

How it works

1. scip-swift builds your repo with indexing-while-building enabled:
   • SwiftPM repos: swift build --enable-index-store
   • Xcode-project repos: xcodebuild ... COMPILER_INDEX_STORE_ENABLE=YES
2. It reads the resulting IndexStore via IndexStoreDB's SymbolOccurrence query API.
3. It maps each occurrence to a SCIP Occurrence/SymbolInformation — including symbol relationships (overrides), role bits, and minimal signatures — and emits a .scip file.

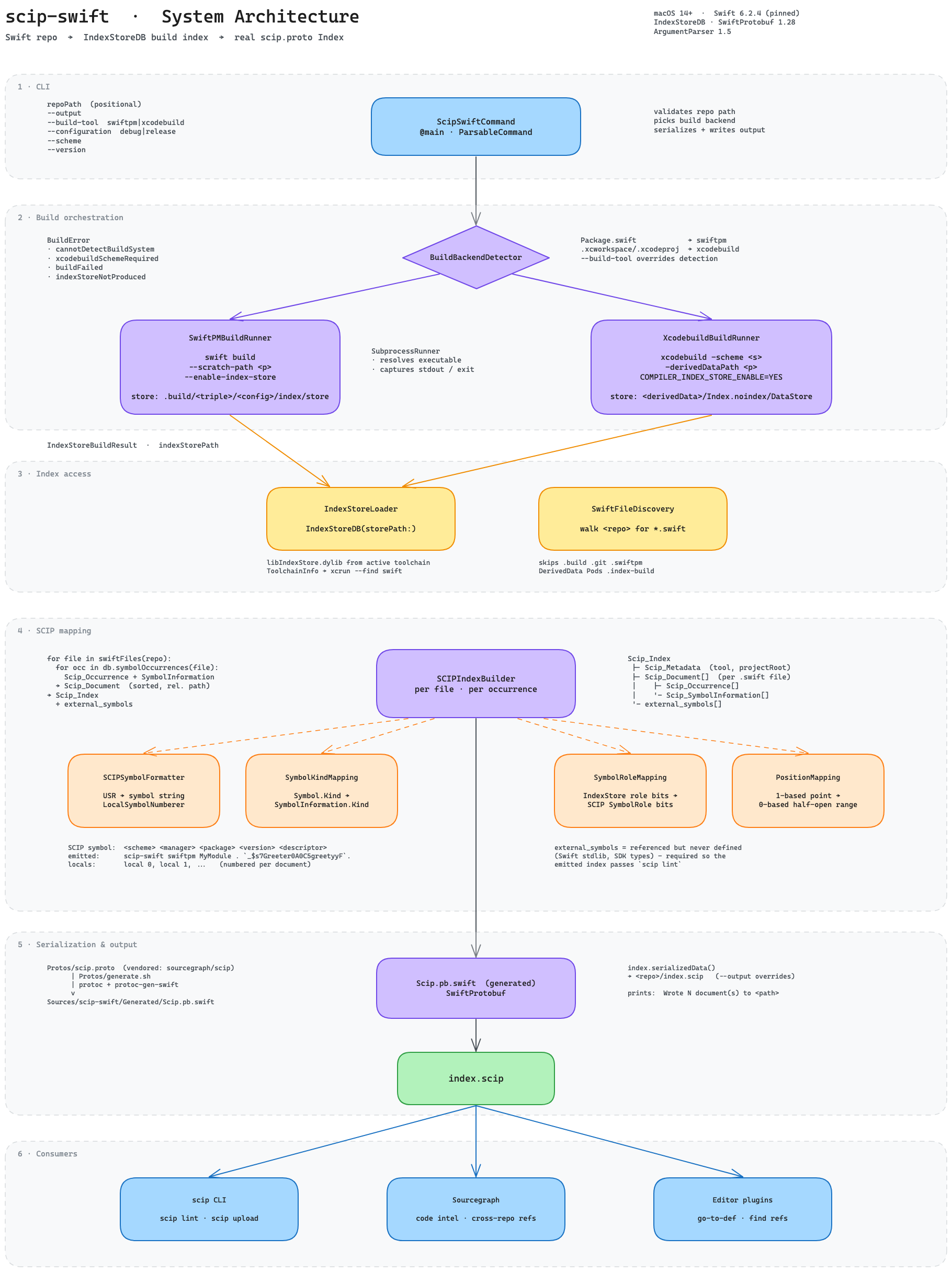

Architecture

See docs/system-architecture.md for the component-by-component breakdown.

Install

macOS 14 (Sonoma) or later is required.

Homebrew:

brew install phuongddx/scip-swift/scip-swift

Or build from source (requires a Swift toolchain matching the pinned version in .swift-version):

git clone https://github.com/jarvis-intelligence/scip-swift.git
cd scip-swift
swift build -c release
cp .build/release/scip-swift /usr/local/bin/

Prebuilt universal binaries (arm64 + x86_64) are attached to each GitHub release.

Usage

scip-swift /path/to/your/swift/repo
# writes /path/to/your/swift/repo/index.scip

The index subcommand is equivalent — useful for tools that always pass an explicit subcommand name (index is also scip-swift's defaultSubcommand, so the bare form above dispatches to it):

scip-swift index /path/to/your/swift/repo --output /path/to/output.scip

Options:

Indexing multiple repos

index-many indexes two or more repos independently, writing one .scip per repo or merging them into a single index:

# one .scip per repo, written to --output-dir (default: current directory)
scip-swift index-many /path/to/repoA /path/to/repoB --output-dir out/

# merge into a single index (default: ./merged.scip)
scip-swift index-many /path/to/repoA /path/to/repoB --merge --merged-output combined.scip

index-many supports --configuration and --cache-dir as well.

Incremental indexing

Passing --cache-dir (or --index-only) switches the pipeline from a throwaway temp directory to a persistent cache:

• Unchanged files reuse their previously computed Scip_Document (keyed by SHA256 content hash), so re-indexing after small edits only reprocesses what changed.
• The cache is invalidated wholesale when the Swift toolchain version, scip-swift version, indexstore-db revision, or build backend changes (recorded in manifest.json).
• --index-only reuses the already-built IndexStore under the cache directory (it does not rebuild), so it fails with indexStoreNotFoundForIndexOnly if no prior indexed build exists there.

macOS-host requirement

Indexing any repo that imports Apple-platform-only frameworks (UIKit, WatchKit, WidgetKit) requires a macOS host with Xcode and the relevant SDKs — Apple does not ship the iOS SDK for Linux. Pure Swift-package code without those imports can build (and be indexed) on Linux, but that's not the common case for a real iOS app repo. If the underlying build command fails for this reason, scip-swift surfaces it as a build failure rather than silently producing a partial index.

Known limitations

• Symbol identity, not full demangling: Scip_SymbolInformation.symbol embeds the compiler's raw USR (Unified Symbol Resolution string) as an opaque, escaped identifier rather than a demangled namespace/type/method descriptor chain. USRs are already a compiler-guaranteed, project-wide unique and stable identifier, so cross-references resolve correctly — but the raw symbol string isn't human-readable the way com/example/MyClass#myMethod(). is for some other SCIP indexers.
• Approximate occurrence ranges: IndexStoreDB (like the underlying IndexStore format) only records a single anchor point per occurrence — not a start/end range — so the end column is approximated from the symbol's display-name length. This is usually exact for simple identifiers and can be slightly off for compound names or unusual spellings.
• No call-hierarchy role: real scip.proto's SymbolRole enum has no call-specific bit; call sites are marked with the same ReadAccess/WriteAccess roles as any other reference.
• Minimal signatures: reconstructed signatures carry the symbol name but lack parameter and return types — IndexStoreDB's symbol data doesn't expose them.
• Relationships limited to overrides: only override relationships are mapped; IndexStoreDB's relation data doesn't cover the full SCIP relationship set.
• USR stability across toolchain versions is not guaranteed by Apple. This project pins the Swift toolchain version it's built and tested against (see .swift-version); indexing with a different toolchain version may be fine in practice but isn't a supported/tested configuration.

Development

swift build
swift test

Regenerating the vendored SCIP protobuf bindings (only needed if Protos/scip.proto is updated from upstream sourcegraph/scip):

brew install protobuf swift-protobuf
Protos/generate.sh

License

Apache-2.0 — see LICENSE.
